ROLL TROLLEYS

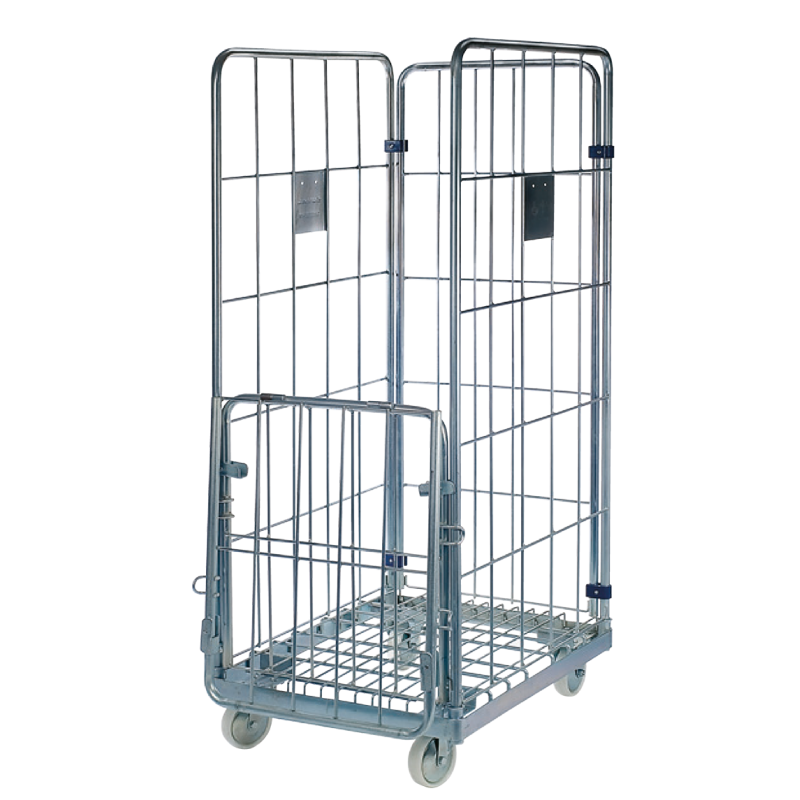

2 1/2 DOOR TROLLEY

• Attachment based on perforated tires.
• Color: silver.
• Components: 2 side panels, 1 rigid front panel, 2 hinged half doors, 1 dolly, 2 fixed castors, 2 125 mm swivel castors. Ø with anti-wire plate.
• Rear with PVC flanges / metal seals, front with metal seals.
• Weight: 47 Kgs.

STANDARD TROLLEY DIMENSIONS

• Useful dimensions: 1.500 mm. height x 760 mm. lateral x 620 mm. front.
• Maximum external dimensions: 1.700 mm. height x 815 mm. side x 720 mm. front.

NARROW CARRIAGE DIMENSIONS

• Useful dimensions: 1.500 mm. height x 760 mm. side x 620 mm. front.
• Maximum external dimensions: 1.700 mm. height x 815 mm. side x 720 mm. front.
• Hinged door trolley

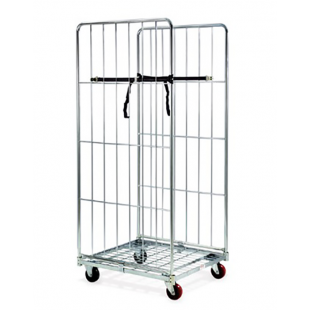

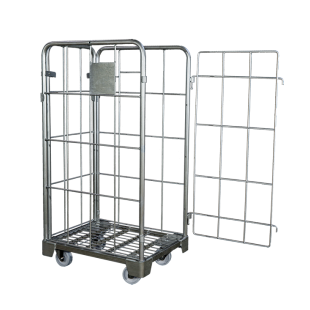

HINGED DOOR TROLLEY

• Handrail base without metal hooks.
• Rear with PVC flanges/metal seals, front with metal bushings.
• Useful dimensions: 1.500 mm. height x 750 mm. side x 620 mm. front.
• Maximum external dimensions: 1.700 mm. height x 810 mm. side x 680 mm. front.
• Color: silver.
• Components: 2 sides, 1 rigid front, 1 folding front, 1 dolly, 2 fixed wheels, 2 125 mm swivel castors. Ø with anti-wire plate.
• Weight: 46 Kgs.
• 2-sided trolley and rear trolley

2-SIDED TROLLEY AND REAR

• Handrail base without metal hooks.
• Rear with PVC flanges/metal seals, front with tensioners.
• Useful dimensions: 1.500 mm. height x 800 mm. side x 620 mm. front.
• Maximum external dimensions: 1.700 mm. height x 800 mm. side x 680 mm. front.
• Color: silver.
• Components: 2 sides, 1 rigid front, 1 dolly, 2 fixed and 2 swivelling 125 mm wheels. Ø with anti-wire plate, 2 tensioners.
• Weight: 32 Kg

SMALL CAR LFPQ

• Useful dimensions: 1.010 mm. height x 625 mm. side x 470 mm. front.
• Maximum external dimensions: 1.175 mm. height x 680 mm. side x 540 mm. front.
• Color: silver.
• Components: 2 sides, 1 rigid front, 1 front door, 1 dolly, 2 fixed wheels, 2 100 mm swivel castors. Ø.
• Handrail base without fastening.
• Rear with PVC flanges/metal seals and front with metal bushings.
