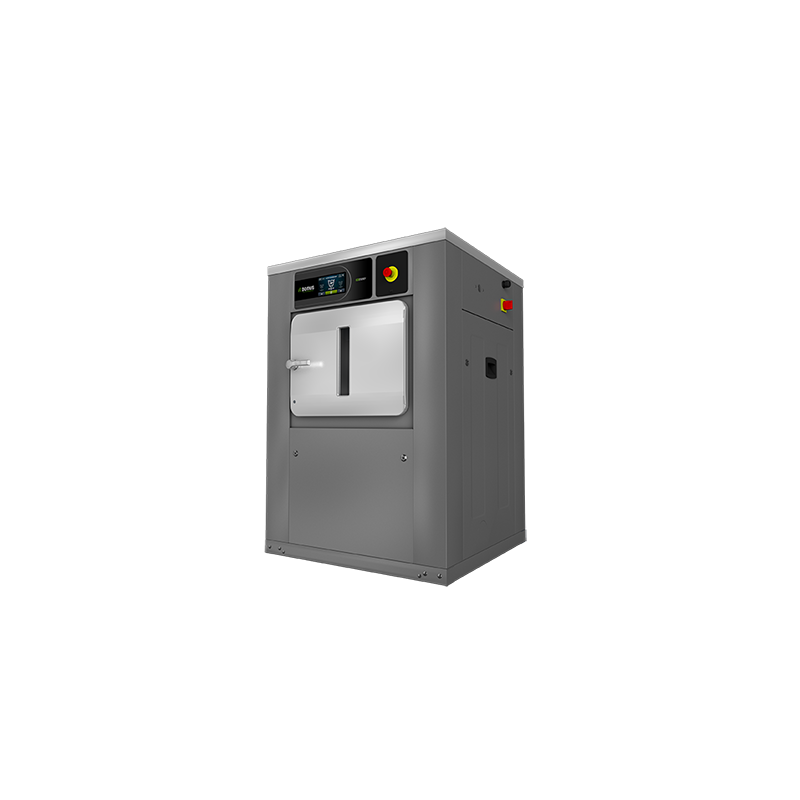

Domus Sanitary Barrier Washers: ASM-16, 22 TOUCH II

TOUCH II

• User friendly and programmable Touch II Control with a 4,3’’ touch screen (29 preset programs)
• USB Connection. PC software free of charge for programming, traceability, data analysis…
• 37 available languages
• 8 dosing signals as standard

OUTSTANDING FEATURES

• Automatic positioning of drum 2 water inlets
• Wet cleaning features ready
• G-FACTOR 350
• Traceability as standard
• Heating: electric, steam, and new dual heating model (electric+steam)

EFFICIENCY

• Intelligent Weighing System
• Optimal loading
• Water Recovery tanks ready: ECOTANK
• Low water consumption
• High G-FACTOR: reduced residual moisture > reduced drying time

CONNECTIVITY

• Remote technical service
• Management of laundries

ERGONOMICS

• Huge door opening making loading/unloading easier
• Easy friendly drum opening by push button
• Heigh of loading: door base 670 mm

MAINTENANCE

• Electric components on the left side, mechanic components on the right side and connections on the top (protected from water and detergents)
• Central drain as standard
• Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance

OTHERS

• Free standing: no need to be anchored to the floor
• Ready to be connected to dosing pumps
• Grey skinplate outer casing
• Top panel, drum and vat in stainless steel AISI 304
• Frequency inverter to control imbalance
• CE approved product

OPTIONS

• 4,3’’ second screen on clean side
• Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals)
• Relay card with 6 extra dosing signals: up to 14 signals
• Printer
• DomusConnect communication
• Third water inlet
• Double drain
• Titration valve
• Side drain valve
• Low steam pressure
• Detergent box with 4 compartments
• Electric drum motor brake
• UPS Option (in case of power failure)
• Plinth to align loading height (door base at 850mm)
• Stainless steel AISI 304 outer casing
• Stainless steel AISI 304 frame
• Maritime wooden packing
• Maritime voltage 440V III 50/60 Hz No Neutral (only for electric models)
