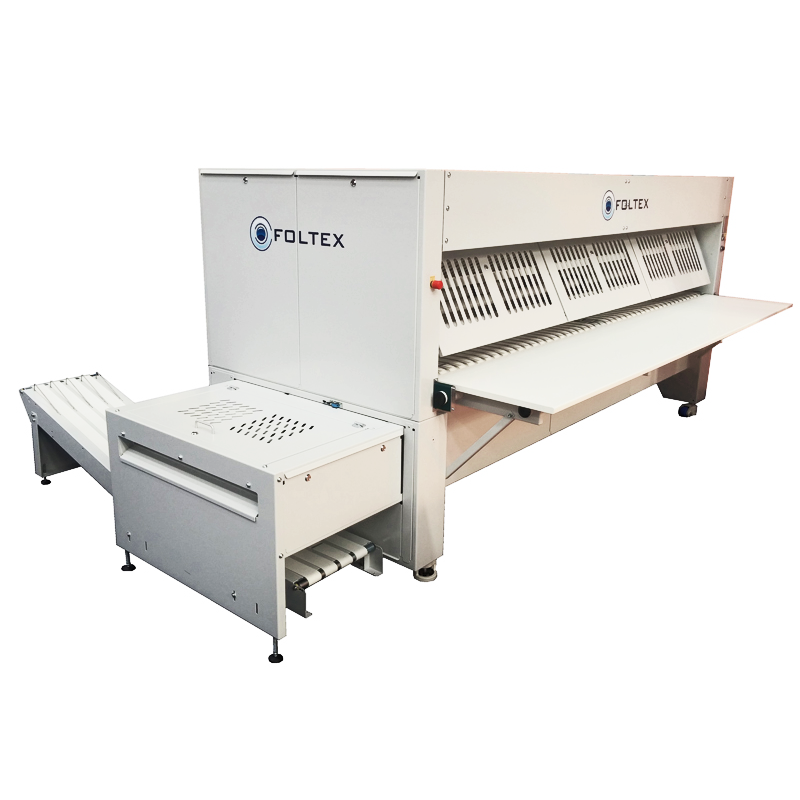

FlexFold Foltex folder: LP 300-400

• Flat clothes folder with capacity to treat all types of clothes such as pillowcases, duvet covers, tablecloths, napkins.
• Simple, robust and efficient design.
• Different configurations.
• 2 or 3 longitudinal folds in up to 4 tracks.
• 1, 2 or 3 transversal folds.
• Forced air folding system.
• Double air injection line allows to fold all kinds of thicknesses.
• Rigid and resistant construction.
• Maintenance-free toothed belt drive.
• No chains, no lubrication required.
• Motors managed through a frequency converter, eliminates the complicated and expensive maintenance costs of mechanical brakes/ clutches.
• Encoder for measurement control, thus avoiding problematic reflectors and photocells.
• Automatic synchronization with the calender.
• Working speed from 8 to 50m/m.
• Incorrectly inserted parts are automatically rejected.
• Double blowing line for the first longitudinal folding.
• The cross-folding rollers open automatically in the event of a jam.
• The folding speed is adjustable thanks to the frequency control.
• Automatic folding according to the size of the garment.
• Multitude of configurations for transversal folding.
• The first fold of the Cross is made with a mechanical blade.
• Cross folding of parts up to 900 mm.


 OPTIONAL

• Double stacker, by Roll Off fall.
• Anti-static bar.
• Rejection of parts by Scanner.
