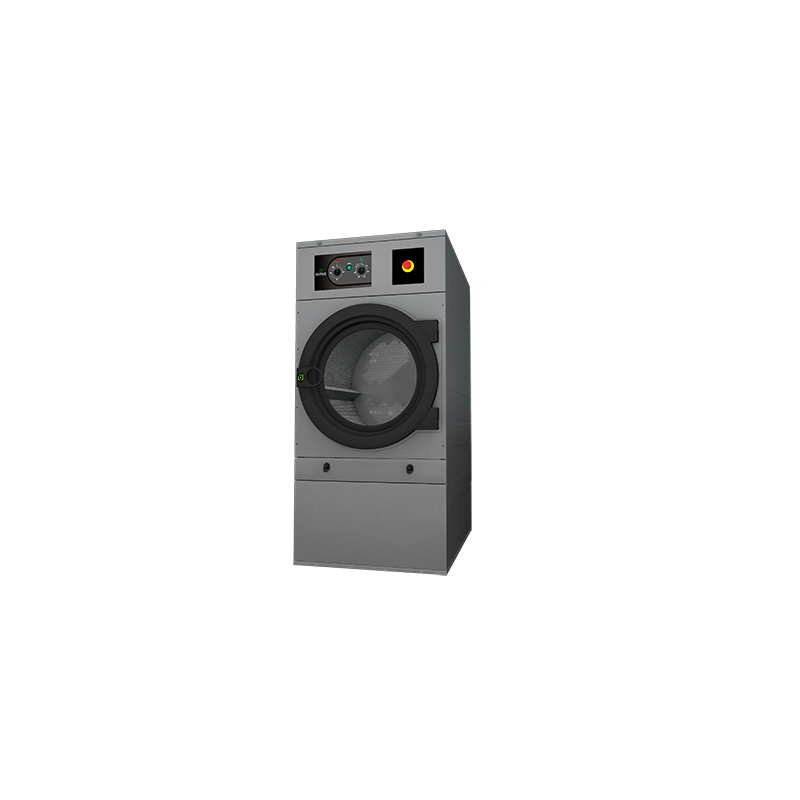

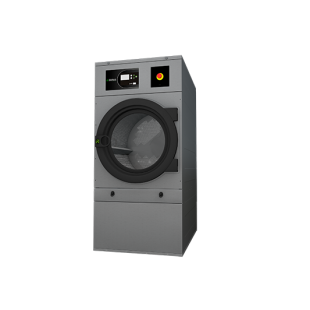

ECO-ENERGY DOMUS INDUSTRIAL TUMBLE DRYER: DTA / DTP -11, 18, 23, 28, 36, 45, 60, 80

DTA/DTP-11,18,23,28,36,45,60,80

A tumble dryer with quality standard features, heavy duty and top performance.

Two versions available, with timer (DTA) or digital control (DTP).

DTA - 11, 18, 23, 28, 36, 45, 60, 80 COMFORT (TIMER)

DTP - 11, 18, 23, 28, 36, 45, 60, 80 COMFORT (DIGITAL)

Construction and drum

  • Construction in grey skinplate, stainless steel look.
  • Big loading door (opening of 180º).
  • STAINLESS STEEL DRUM: standard.
  • SOFT DRY : The new drum perforations make sure the linen is gently handled.
  • REVERSE ACTION: All models offer the reverse turning of the drum.
  • FULL SCREEN FILTER: New filter drawer with wide surface and improved airflow.

Control

  • DTP models - ELECTRONIC CONTROL: Easy and intuitive to use, the electronic control offers a complete control of the process.
  • DTA models - With time and temperature selection. Light indication of heating. (These models do not allow the moisture control option).
  • COOL DOWN: Anti-wrinkle at the end of cycle.
  • DOUBLE FLOW: Mixed axial-radial airflow to optimise and maximise the airflow circuit in the drum.

Transmission

  • By means of a direct drive through a gearbox, no pulley, in DTA/DTP-11 to DTA/DTP-23.
  • In bigger models, DTA/DTP-28 to 80, transmission is by means of a pulley and Poly-V belt, as well as supporting wheels in the front.

Heating

  • Models available in electric, gas or steam heating. Big models 45 to 80kg also available in thermal oil.
  • Big models steam battery is made of stainless steel to work at high pressures (up to 12 bar).
  • Option of a low pressure steam battery.

Options

  • Back panel with air filter.
  • Opposite door opening - to order with dryer order.
  • Fluff filter with grid 0,6 mm or 1,2 mm holes (standard is 0,3 mm).
  • Stainless steel front and side panels.
  • Wooden crate.

Options only for DTP (digital) models

  • EFFICIENT DRY : The intelligent humidity sensor offers a precise control of the moisture in the linen. By this system the drying cycle will automatically stop when it reaches the set level of residual moisture.
  • SFEX: Integrated Fire Extinguishing System.

SELF-SERVICE

  • The COMFORT digital (DTP) range is also available in a self-service version to connect to a central pay, and with a coin kit to work with coins/tokens. See self-service section.
